Nixer Pro Audio

PD Dante

PD Dante

SKU: NIX-NIX00522

€2.516,82 (zzgl. MwSt €478,19)
€2.516,82
Sale
Estimated procurement time: 4 weeks

Product enquiry

Do you have a question about this product or would you like a quote? Please get in touch with us:

Product descripton

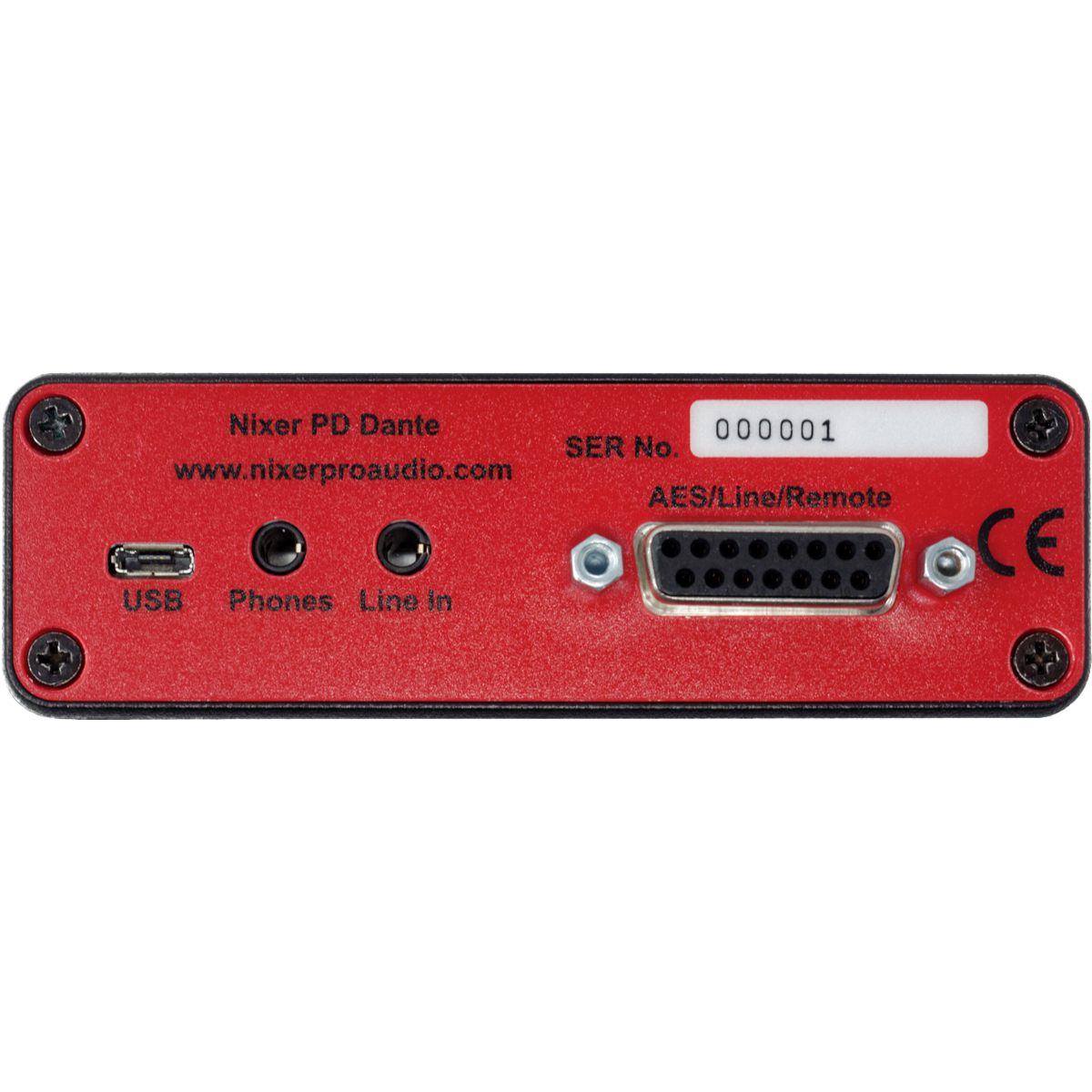

PD Dante - 64 channel Dante portable network monitoring tool - featuring PoE, Redundant ports, AES67 compatibility, built in speakers, headphone amp, 15 way D-Sub (2 x line outputs, AES input, AES output, remote control) PSU not included -

Functionality

  • Monitor up to 64 channels of audio from Dante Network
  • Two modes of operation Mix mode or Listen Mode
  • Control Dante deivces on the same network
  • Change Dante network settings
  • Add and delete Dante subscriptons
  • Change Sample rates
  • Change device and channel names
  • Built in signal generator Sine wave, Square wave, Triangle wave, Burst tone, White noise and Pink noise with abilty to send to Dante network
  • Generate BLITS tones and route to Dante network
  • Up to 64 Signal meters
  • Optional peak hold on meters
  • No external Softwar (e.g. Dante-Controller) needed

Product specification

Dante only

  • AES67 compatible
  • SMPTE 2110 compatible
  • Fully compatible with New Dante Domain Manager – Dante option only


Sample rates supported: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Bit Depth supported: 16bit, 24bit, 32bit

AoIP inputs
Dual 1Gbps RJ45
1Gbps or 100Mbps operation
User configurable for Switched or Redundant operation
Network configuration information available via menu

Speakers and Headphones
Internal 2W/channel amplifier feeding either
2x small full range speakers or headphones
3.5mm Headphone socket (with microphone input)
Headphone output can drive loads from 8ohm to 600ohm

Dual Balanced Line Outputs
Available on the 15way D-sub
Output selectable from main mix, AES in, Line input or Signal generator
0dBFS = +21dBu maximum output into 600ohms
Output Mute relays

AES In and AES Out
Stereo AES3 Input available on the 15way D-sub
SRC converts from 44.1kHz, 48kHz or 96kHz to RL64 sample rate
AES3 routing to any output
Stereo AES3 output available on the 15way D-sub
Output selectable from main mix, AES in, Line input or Signal generator

Other Ports
USB port is also used for product firmware updates

Power input
PoE via Primary RJ45 connector
Or via the USB micro AB connector
Both power inputs can be active at the same time for redundancy

LCD
5.0” (127mm) diagonal 24bit colour LCD with 800xRGBx480 resolution
LED backlight (adjustable brightness via software)
5-point touch capacitive touch overlay with gesture support

Product Sizes

  • Dimensions: 173mm long by 106mm wide by 34mm height
  • Weight: 0.5kg
