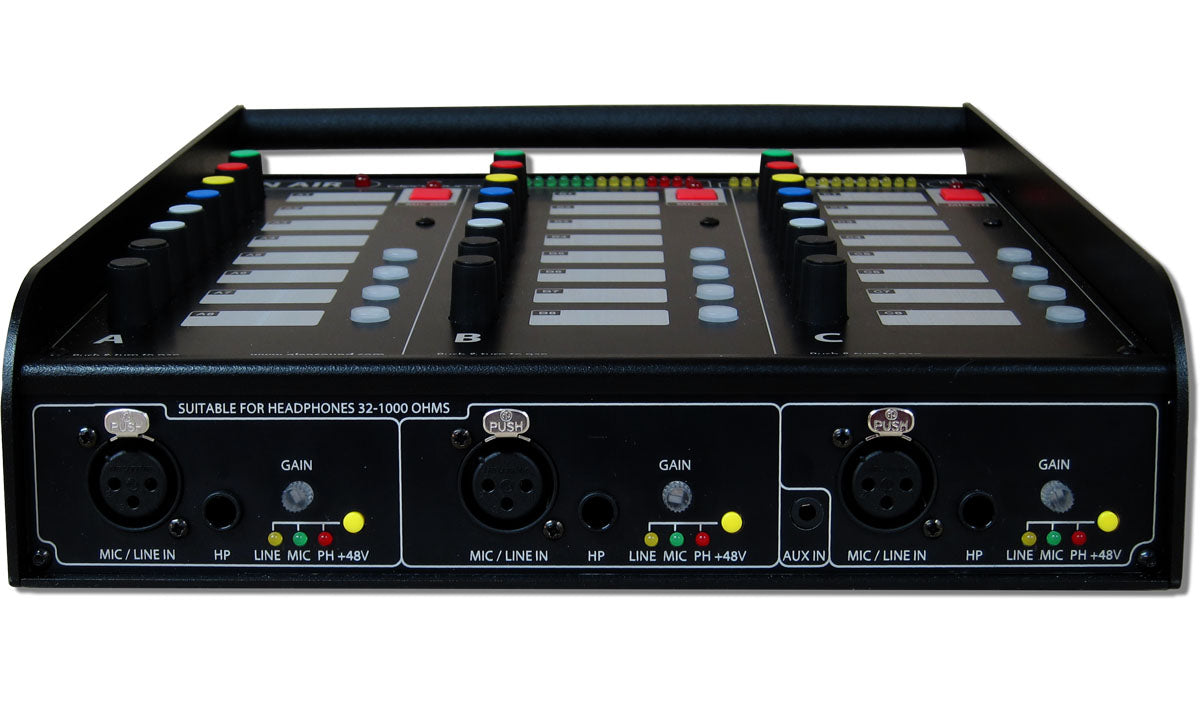

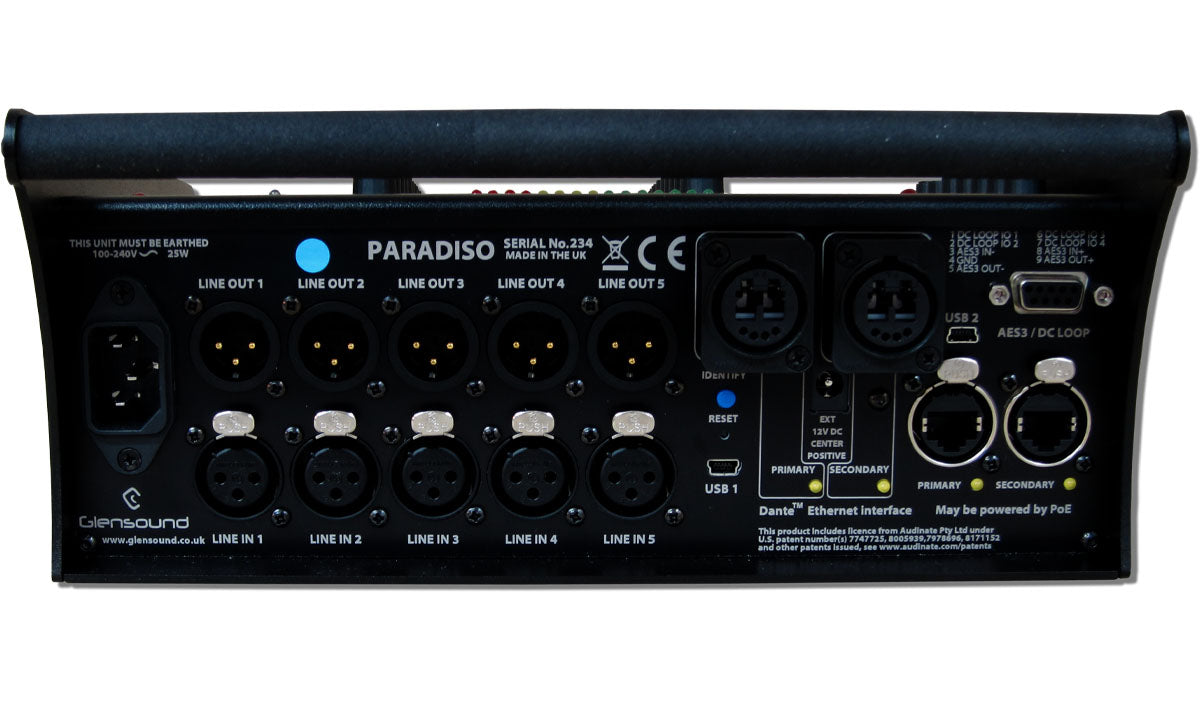

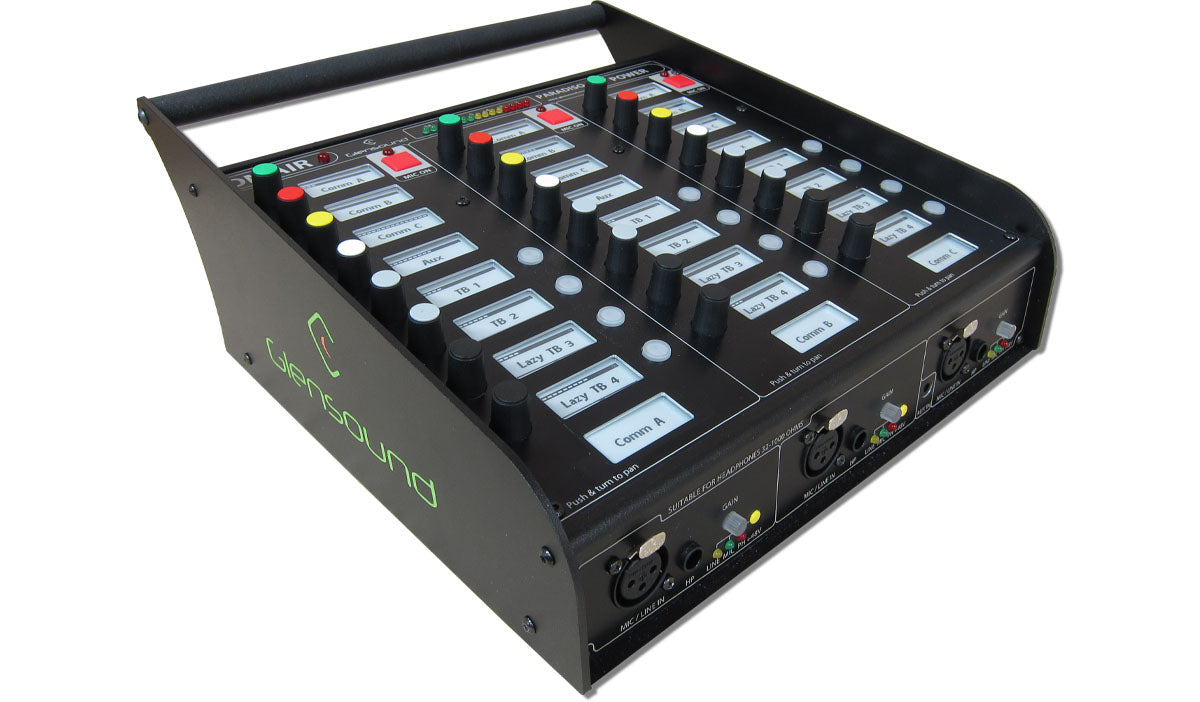

PARADISO

Comprehensive commentary unit

• Suitable for 3 commentators on 1 programme or 3 separate programmes
• Glitch free redundant Dante network audio
• Two copper & two fibre network interfaces
• Multiple power sources (PoE x 2), Mains & DC
• Best microphone amplifiers available
• ePaper displays to make the commentators life easy
• Local analogue and AES3 inputs & outputs for extra redundancy
• Includes our much revered Referee compressor/ limiter
• Windows 10 app for remote control & setup
• No expense spared to make this the best commentary unit ever
• Dante (AES67 compliant) commentary box for 3 users
• System is scalable with multiple Paradisos as part of a large Dante network
• Can connect to any Dante compatible device.
• 5 analogue inputs and outputs
• 1 AES3 (2 channels) of inputs & outputs
• Ultra low noise mic/line/48v inputs
• Glensound's Referee compressor/limiter keeps even the loudest commentator sounding natural.
• 3 Headphone amplifiers each with 8 audio inputs each with their own headphone volume control.
• Each headphone input has panning between left/ right ear.
• Each commentator has 4 talkback circuits
• Multiple power options including PoE, Mains & External DC
• Network connections on Copper (Cat5) and Fibre (Neutrik Opticons)
• Primary & Secondary network connections allowing completely transparent network redundancy.
• Unique ePaper displays for commentators interface.
• Large bright PPM level meter
• Remote control via Windows 10 app for setup and live controls
• GPIO (General purpose inputs/outputs) interface for interaction with talkback systems or studio red lights.
