Product descripton

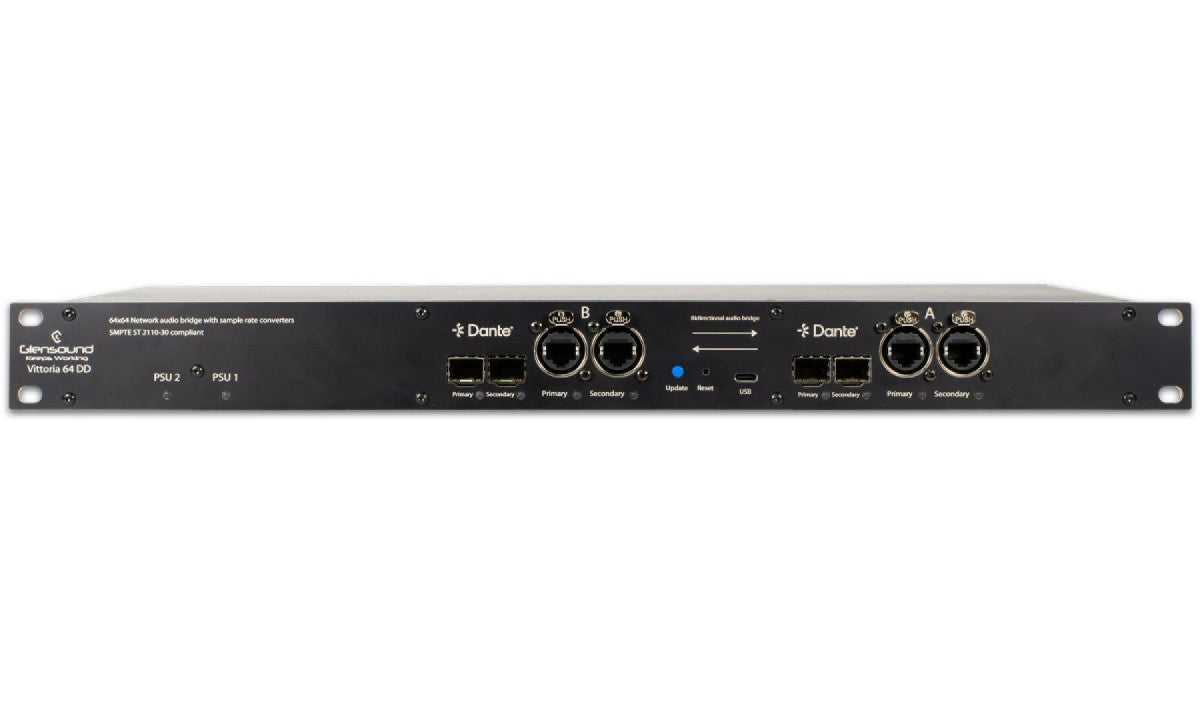

The universal AoIP Bridge by Glensound
The Vittoria provides a bridge between two internal and separate AoIP networks. These networks are completely isolated from each other with 100% network security, providing a complete network firewall. Vittoria links 64 channels from each network directly in DSP, allowing the passing of bi-directional audio but with complete isolation and security from each separate network.

As each network is isolated, they can operate asynchronously and at different sample rates from each other without any problems. Each network can operate at sample rates from 44.1 kHz up to 96kHz.

Network interface options
A Ravenna/AES67 module is now also available allowing the Vittoria to include a Dante and a Ravenna module, for two isolated networks using different technologies but still passing audio.  Available configurations are:

Vittoria 64 DD:  Dante to Dante
Vittoria 64 DR:  Dante to Ravenna
Vittoria 64 RR:  Ravenna to Ravenna

Depending on the type, the Vittoria comes with Dante and/or Ravenna/AES67 network interfaces
Each interface has:
- Primary connection using copper Ethernet via RJ45 EtherCON socket
- Secondary connection using copper Ethernet via RJ45 EtherCON socket
- Primary fibre connection via SFP module slot
- Secondary fibre connection via SFP module slot

The two network interfaces will typically be connected onto different networks and the Vittoria will ‘bridge’ between them.

Independently Operated Networks
As each side of the Vittoria is independent and not connected across a network, they can have independent settings.

For example, if the Vittoria is in OB truck running its own network connection at 48kHz to sync with the other devices on board the truck, but needs to link with an external network in a local studio that is operating at 44.1kHz, then that is no problem for the Vittoria. It will bridge the two network settings and audio will flow!

If you have a work flow that includes AES67 and/or separate Dante networks, then the Vittoria can be used to bridge between them, with one network interface operating in Dante mode, and the other operating in AES67 mode.

Each network on the Vittoria will operate between sample rates of 44.1-96kHz.

64 Channels
The Vittoria features, depending on the AoIP Type, a Dante Brooklyn III module and/or Ravenna/AES67 Modules. Each interface and has 64 channels. Whatever you input on the primary interface is output on the secondary interface, and vice versa, up to 64 channels.

Network Compatibility
As well as Dante & AES67, the Vittoria is also SMPTE ST-2110-30, the Dante Modules are compatible using DDM.

Each Network Can Operate Asynchronously
Although each network of the Vittoria is connected via Ethernet, they can be operated with different master clocks at different clock speeds. This could be useful if you needed to spread the number of devices on one network across two. This would be very useful when using a high number of Ultimo based devices, for example.

Separate Word Clock In/Out
Each network interface has a word clock input and a word clock output connection, available on full size BNC connectors. This allows connection of other devices for clock sync on each network separately.

Vittoria As A Sample Rate Converter
Typically each network interface of the Vittoria will operate on separate networks, however they can both be connected to the same network if you would like to use the Vittoria as a sample rate converter.

If the primary network is operating at 44.1kHz and you want to connect a device at 48kHz, just set the secondary interface to 48kHz and connect your new device to this interface in Dante Controller. The audio will now be available on the primary interface at 44.1kHz.

Redundant Power Supplies
The Vittoria has two switch mode AC power supplies presented on rear panel IEC plugs. These operate on a load sharing basis. This means that both supplies are running together at a low level. Statistically it is shown that running the supplies together offers greater life in the power supply than running one at full capacity with the other only taking over if it fails.
